Plastic Micro Mist Nozzles

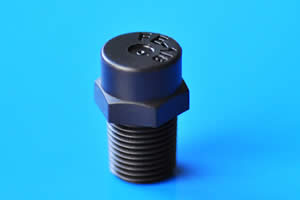

FC Plastic Micro Mist Nozzle
Model FC is hydraulic plastic mist nozzle, the body is made of PP plastic in black color with a screen mesh. This plastic mist nozzle is widely used in mosquito control, yard, stock farm cooling and humidification.
- Model:
- FC series
- Construction:
- One-piece body without anti-drip valves
- Material:
- polypropylene plastic
- Thread:
- 1/8 inch male either BSPT or NPT
- Pressure:
- 4 to 15 bar
- Orifice:
- 0.3mm/0.4mm
- Spray angle:
- 65° to 80° at 4 bar
- Flow rate:
- (0.3mm) 3.1 lph at 4 bar
FC Anti-drip Plastic Micro Mist Nozzle
Model FC is hydraulic plastic mist nozzle, there is an anti-drip valve inside of it, so this type needs a higher working pressure of more than 3 bar. This plastic mist nozzle is widely used in mosquito control, yard, stock farm cooling and humidification.
- Model:
- FC series
- Construction:
- One-piece body with an anti-drip valve
- Material:
- polypropylene plastic
- Thread:
- 1/8 inch male either BSPT or NPT
- Pressure:
- 4 to 15 bar
- Orifice:
- 0.3mm/0.4mm
- Spray angle:
- 65° to 80° at 4 bar
- Flow rate:
- (0.3mm) 3.1 lph at 4 bar
